How To Cut Birdsmouth - Framing 101 How To Cut A Rafter Birdsmouth Joint - Furthermore, is a birdsmouth cut necessary?. The seat cut, and the heel or plumb cut. After cutting to the lines with the circular saw use a hand saw to finish the cut through the bottom and clean up any lips that may be left to ensure a clean seat. This new line marks the horizontal cut for the bird's mouth. Chances are that the circular saw won't cut all the way through the birdsmouth. Cut out the triangular chunk almost to its apex with a circular saw.

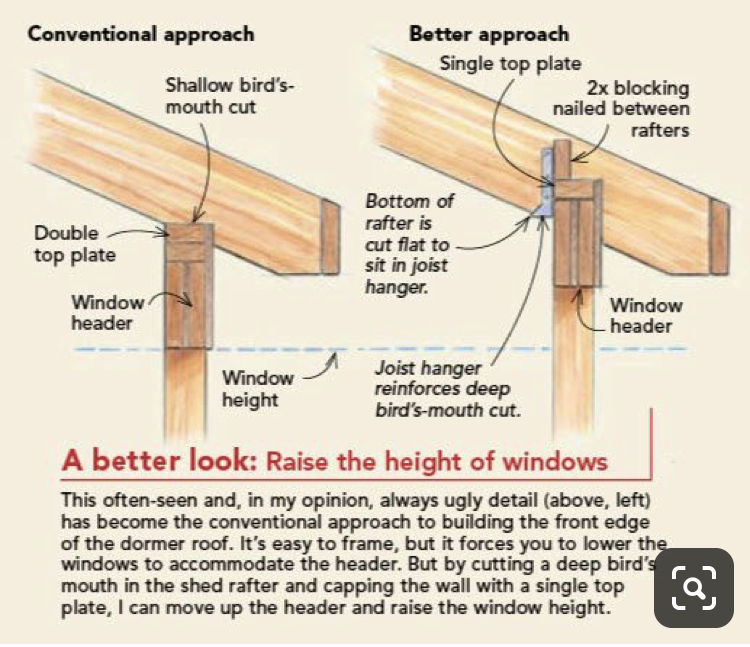

Chances are that the circular saw won't cut all the way through the birdsmouth. The gauge must be aligned in such a way moving up and down the rafter is easy. The width of the 2x4 used to frame the outer wall measures 3.5 inches (8.9 cm), and the outside sheathing measures 1⁄2 inch (1.3 cm). A lot of force is transferred down the length of the rafter, and the seat cut on the birdsmouth transfers that force directly to the top plate. Is there a simple formula for figuring it out?
Rafter Length from www.builderbill-diy-help.com Lets say a 8 overhang. The birdsmouth is such a simple looking cut, going into a rafter and onto a wall plate, but getting the angle and depth right is something that fools the most experienced of carpenters. Determine the depth of the birdsmouth cut. For our purposes, the birdsmouth, or 'barbe' in french, is also the compound angles created when the arrise of one piece penetrates the face of another piece. Be careful not to cut too deeply. Also, it should be no less than 1/3. Simple jig to cut your birds mouth notches. The bird's mouth shape is formed!
Use a circular saw to cut along both of the new marks that you've just made.

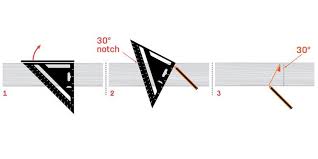

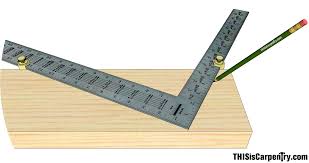

Divide the width of building by 2 e.g. Draw a line at right angles to the bird's mouth plumb cut, starting 3 inches up from the bottom of the rafter but no more than half the thickness of the rafter. Use a square, placing one side against the plumb cut line. Use a square, placing one side against the plumb cut line. This ensures that all the rafters will be the same. Pay attention to the building code that states that the birds mouth vertical cut cannot exceed 1/3 of the vertical height above the plate. Furthermore, is a birdsmouth cut necessary? Birdsmouth joints are made of two cuts: I typically gang cut my rafters, and 90 percent of the time i set the saw to 3 inches to make the seat cut for both 2x10 and 2x12 rafters. I can use a framing square and figure out my rafters and birdsmouth cut. This is often the design that we see with the boards in the roof, though there are other ways to use this. To make cutting a bird's mouth easier use the first finished rafter as a template for the remaining ones. Whatever the reason, you can always get an alternative to a birdsmouth cut instead!
The bird's mouth shape is formed! For some people, birdsmouth cuts are hard to achieve. The cut of a birdsmouth should be no deeper than 1/2 of the width of the wood. The resulting triangle is the bird's mouth. For some, there's just that anxiety that the measurements and cutting won't line up, so you might be wasting wood.
Laying Out A Common Rafter Fine Homebuilding from s3.amazonaws.com The part shown in red in the picture above is the birdsmouth. The bird's mouth shape is formed! Calculate rafter or joist length to birdsmouth location. To make cutting a bird's mouth easier use the first finished rafter as a template for the remaining ones. Choose from our alternatives above. This is often the design that we see with the boards in the roof, though there are other ways to use this. This ensures that all the rafters will be the same. If your circular saw can't reach all the way to the triangle of the birdsmouth joint, use the handsaw or jigsaw to finish the cuts.
The cut of a birdsmouth should be no deeper than 1/2 of the width of the wood.

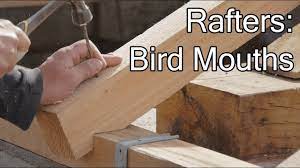

Chances are that the circular saw won't cut all the way through the birdsmouth. Use a square, placing one side against the plumb cut line. A cut that is too shallow will not allow for enough stability. First, the processes align the stair gauges (clamp) along the frame square at the rafter top edge. This new line marks the horizontal cut for the bird's mouth. The birdsmouth is such a simple looking cut, going into a rafter and onto a wall plate, but getting the angle and depth right is something that fools the most experienced of carpenters. The bird's mouth shape is formed! Pay attention to the building code that states that the birds mouth vertical cut cannot exceed 1/3 of the vertical height above the plate. Roof will be on the 10' side. To make cutting a bird's mouth easier use the first finished rafter as a template for the remaining ones. Slide the square's blade until it crosses the intersection of the bird's mouth's plumb cut line and the depth line. For our purposes, the birdsmouth, or 'barbe' in french, is also the compound angles created when the arrise of one piece penetrates the face of another piece. Use a circular saw to cut along both of the new marks that you've just made.

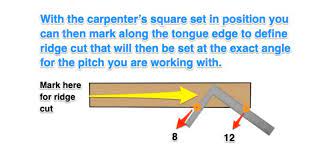

Lets say a 8 overhang. Use a square, placing one side against the plumb cut line. In this diy guide you will learn how to install a roofing joist or rafter that includes how to work out the pitch of a roof, cut a ridge or plumb cut at the correct angle, work out the correct length of joist you need and the exact location for a birds mouth joint, how to correctly cut a birds. Basically, you slice into the rafter and make a heel or plumb cut for the supporting wall. This new line marks the horizontal cut for the bird's mouth.
Birdsmouth Cut How To Calculate And Cut A Birdsmouth Joint from cdn.h2ouse.org Locate the ridge to cut at every 1 feet gap. The part shown in red in the picture above is the birdsmouth. Cutting the birdsmouth joint using your circular saw, cut along the plumb and horizontal lines. Draw a line at right angles to the bird's mouth plumb cut, starting 3 inches up from the bottom of the rafter but no more than half the thickness of the rafter. Draw a line at right angles to the bird's mouth plumb cut, starting 3 inches up from the bottom of the rafter but no more than half the thickness of the rafter. Divide the width of building by 2 e.g. The resulting triangle is the bird's mouth. In this way, how do you mark a birdsmouth cut?
A lot of force is transferred down the length of the rafter, and the seat cut on the birdsmouth transfers that force directly to the top plate.
The cut of a birdsmouth should be no deeper than 1/2 of the width of the wood. To make cutting a bird's mouth easier use the first finished rafter as a template for the remaining ones. Birdsmouth cut in position on top of wall. This new line marks the horizontal cut for the bird's mouth. This new line marks the horizontal cut for the bird's mouth. In this diy guide you will learn how to install a roofing joist or rafter that includes how to work out the pitch of a roof, cut a ridge or plumb cut at the correct angle, work out the correct length of joist you need and the exact location for a birds mouth joint, how to correctly cut a birds. Please consult a professional before making any cuts***** i am not a professional framer or roofer nor do i claim to be. **** this trick worked for me. Cutting the birdsmouth joint using your circular saw, cut along the plumb and horizontal lines. 72 inches wide divided by 2 = 36 inches. Calculate rafter or joist length to birdsmouth location. Measure the full width of the outside wall. Use a circular saw to cut along both of the new marks that you've just made.
